CHC D380 Single frequency Conversion Echo Sounder System

Brand Name : CHC

Model Number : D380

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 20000 per set

Delivery Time : 3-5 work days after the goods are paid

Packaging Details : with standard packing way

Contact Now

CHC D380 Single frequency Conversion Echo Sounder System

D380 is a frequency Conversion Echo Sounder System which is and produced by CHC factory . It is take the advanced Conversion technology and can be configured to different Frequency Transducer . This D380 can be adapt to different Hydrological Conditions of underwater topographic survey which greatly improve the performance and utilization of sounder.To compared with the similar products,t has more waterproof, more durable, stronger data compatibility, corrosion resistance, higher CPU clock speed and more reliable embedded systems

Parameter

Specification	Value
Working Frequency	100-750KHz ( adjusted )
Transmitting Power	500W
Measuring Range	0.3m～600m
Accuracy	±1cm+0.1％×h(h is for the Water Depth )
Resolution	1cm
Max. Sample Frequency	>=30Kz
Adjusted Range in Water	0.0m～99m
Revised Range in Water	0.0m～15m
Data Output	Simulation of multiple formats, adjustable baud rate
Display	High brightness 12-inch color touch screen;Resolution 1024x768
External Port	3 RS-232 serial port, 4 USB ports, 1 VGA display interface, One network interface
Industrial embedded memory	DDR2 1G
Industrial computer CPU clock speed	≥1.6G
Built-in storage	16GB SSD
Power voltage	10~30V voltage DC or AC
Power consumption	20W
Environment	Operating temperature -30℃~60℃, waterproof, earthquake
Size	40cm×27cm×11cm
Weight	6 kgs

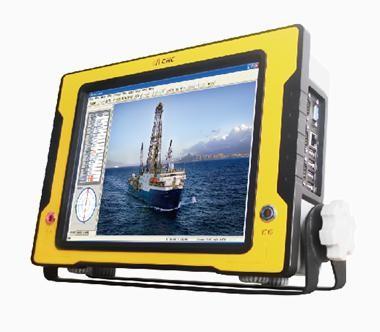

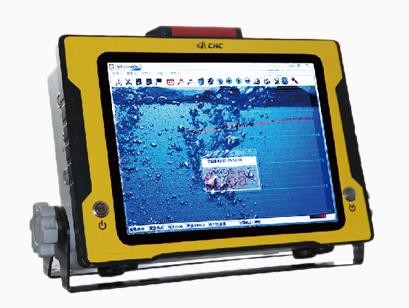

CHC D380 Single frequency Conversion Echo Sounder System Images
